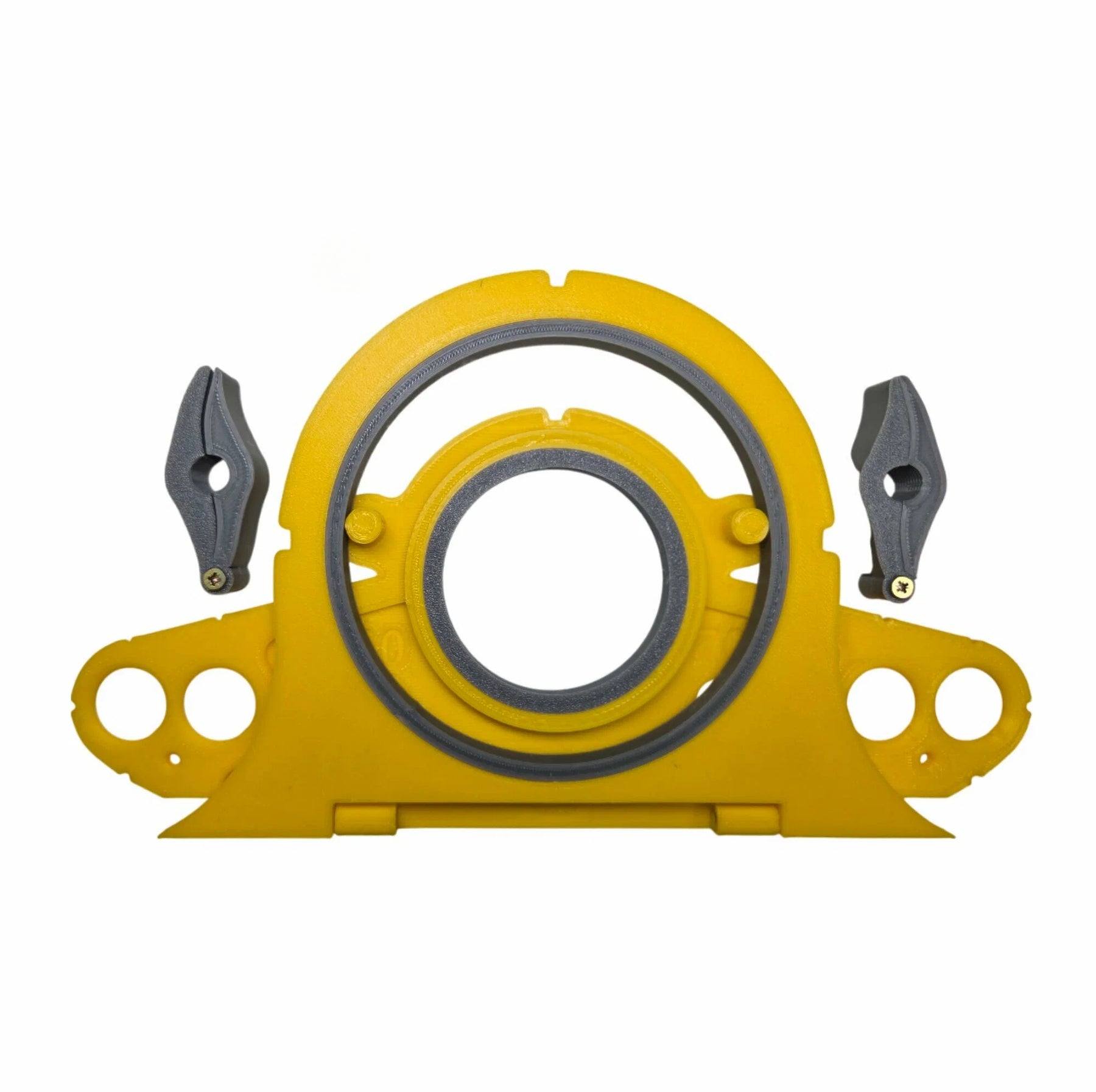

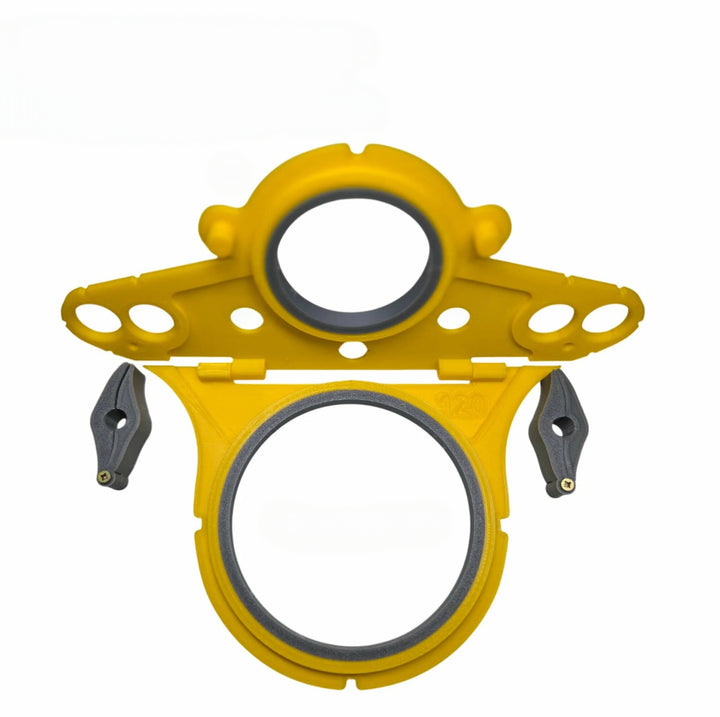

Universal Plumbing Installation Marking Template

🛠️ Product Overview

Make Plumbing Installation More Precise & Efficient

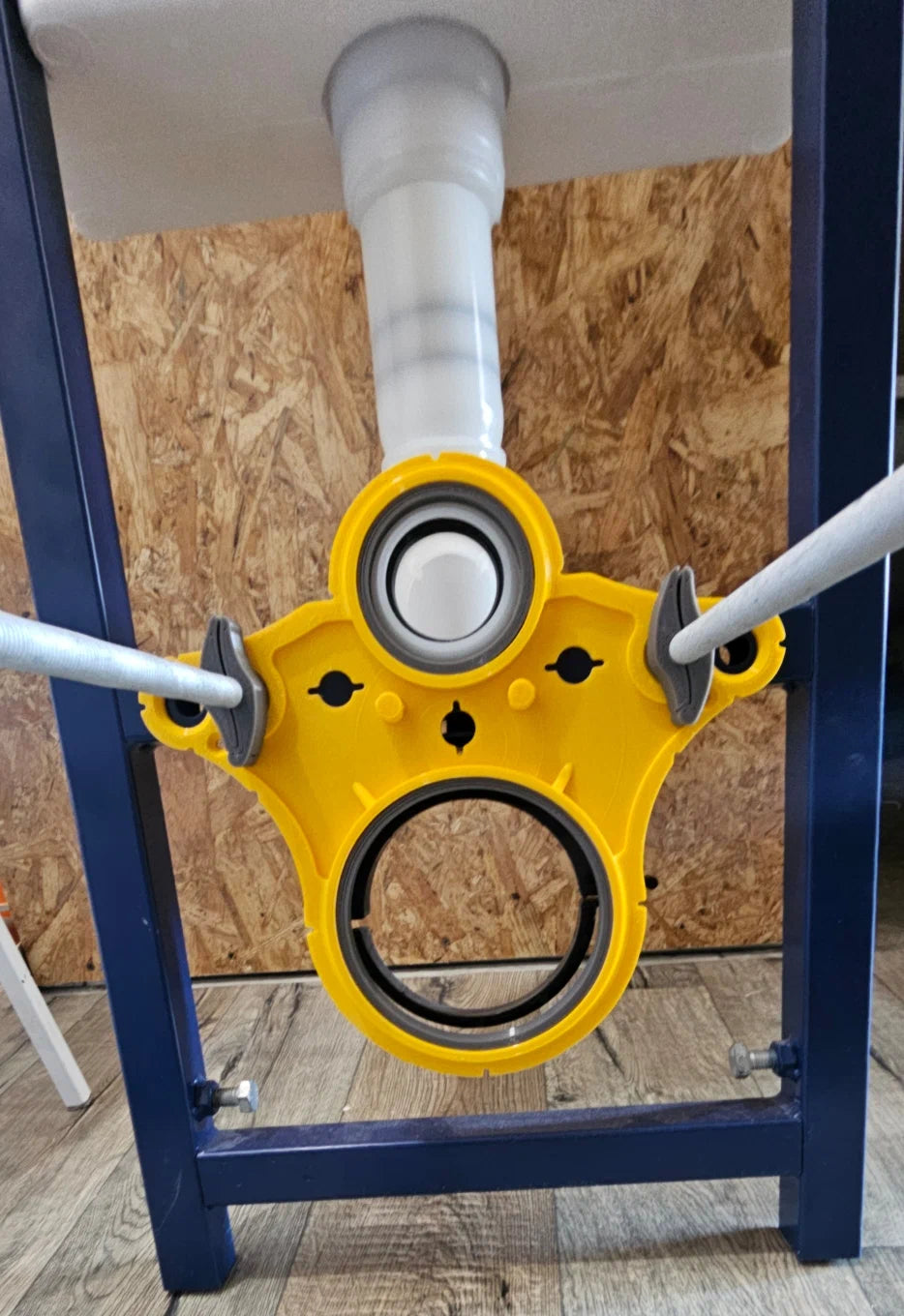

Designed for plumbing and bathroom installation work, this adjustable marking template helps position mounting points and openings accurately before drilling and finishing. Its adjustable inserts and threaded fixing components make it easier to maintain consistent positioning during installation.

Key Features

• 📐 Accurate Positioning — Helps mark mounting points and openings for suspended toilets, bidets, urinals, and other bathroom fixtures.

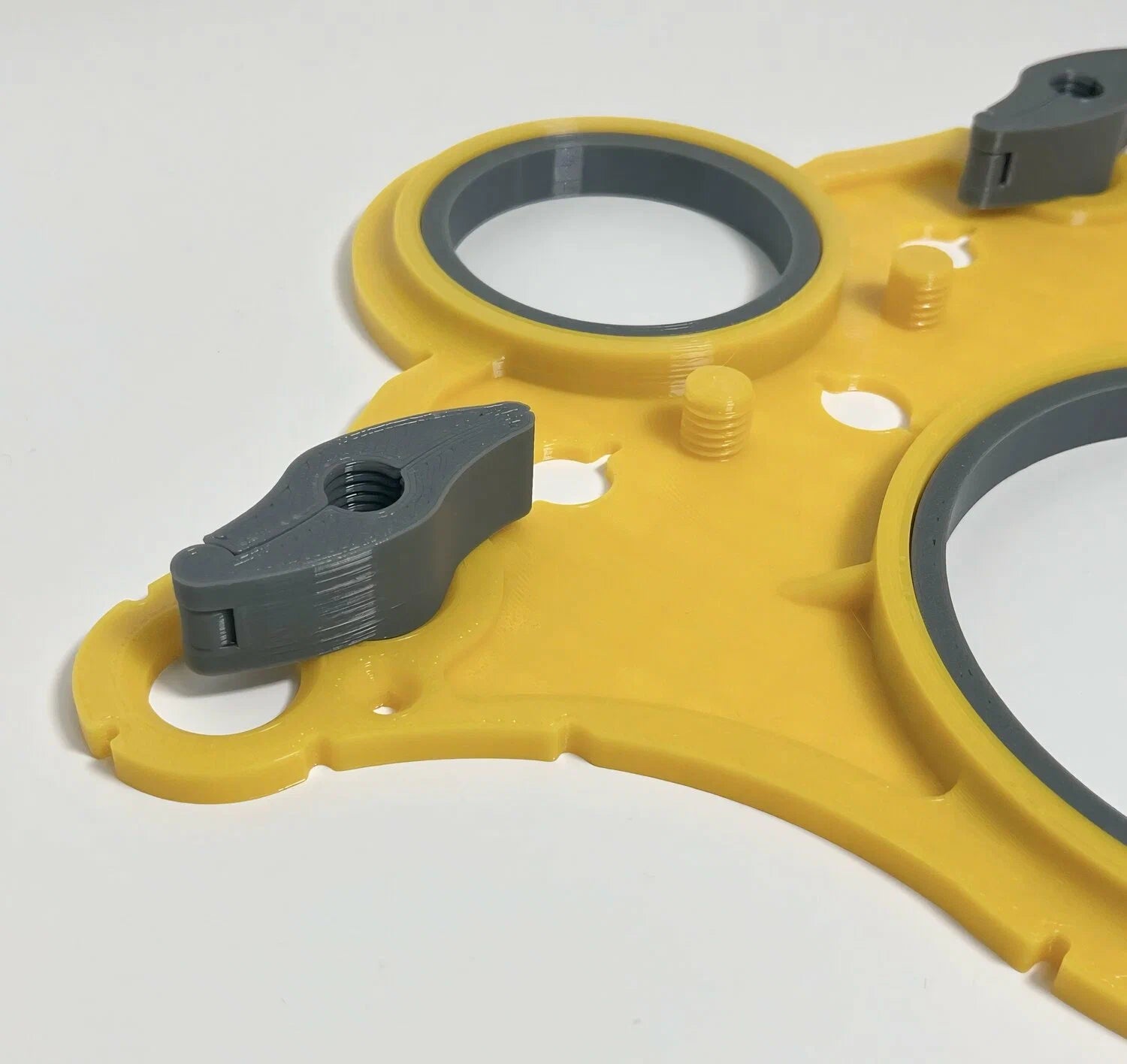

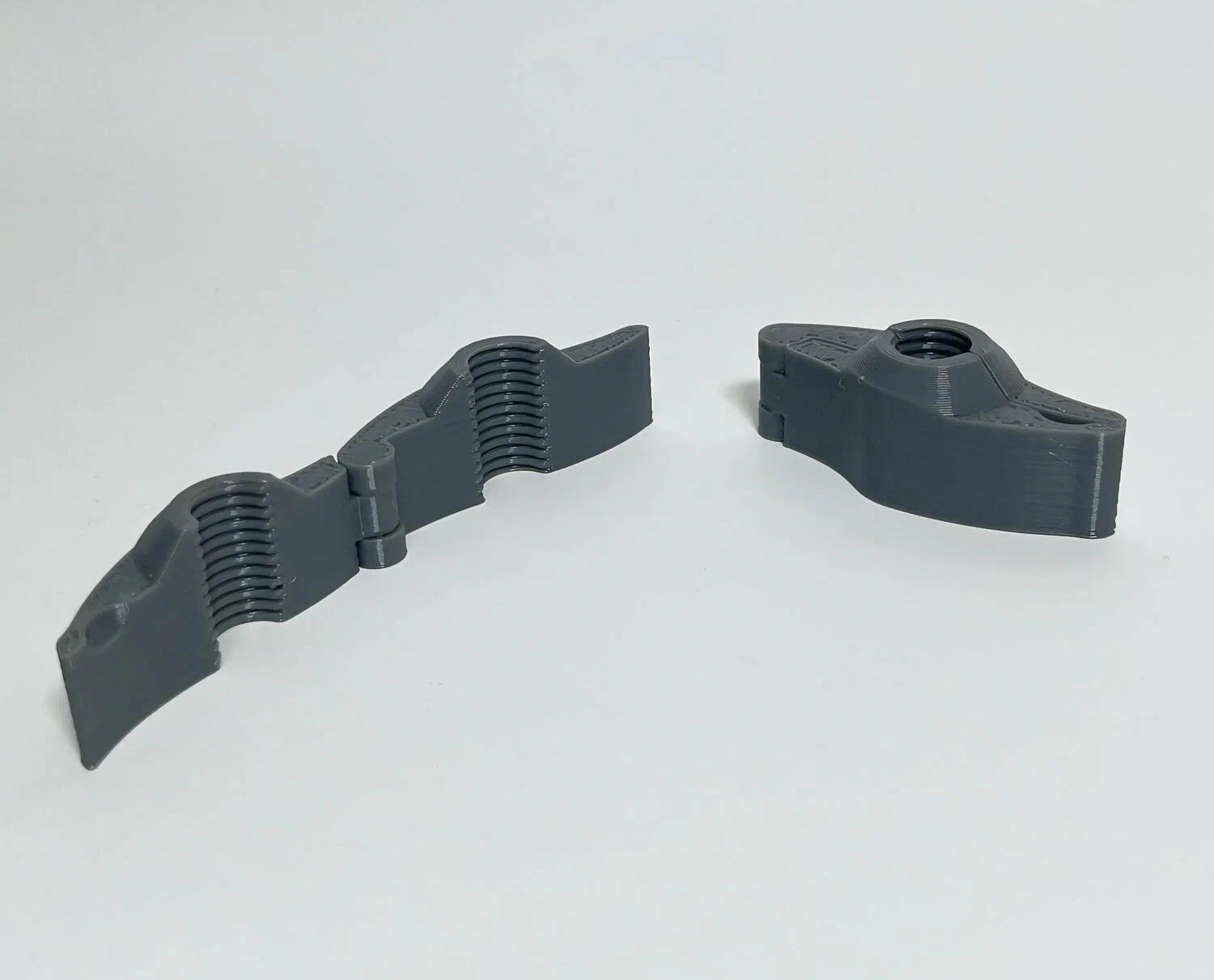

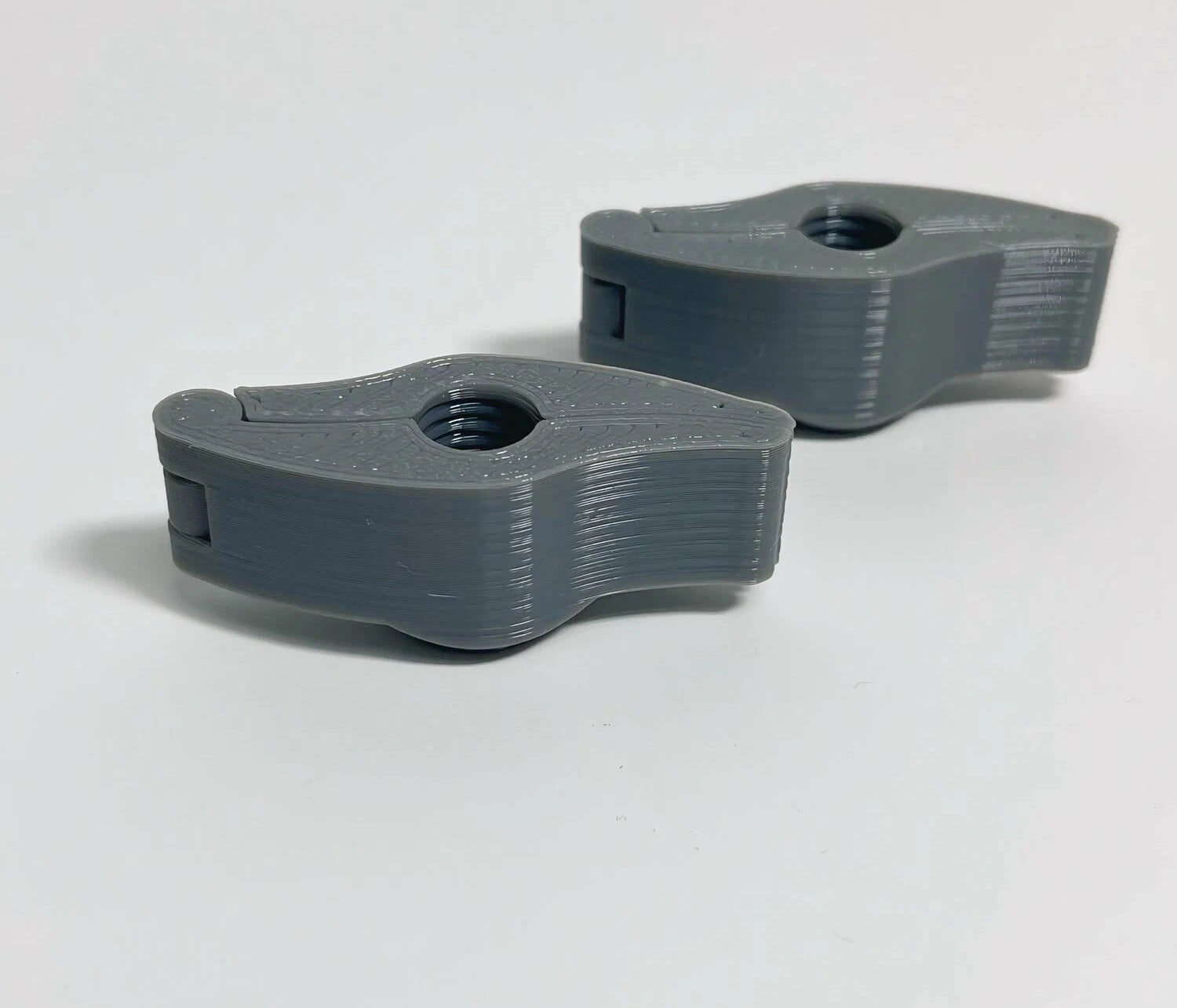

• 🔩 Threaded Fixing System — M12 threaded spacer screws help secure the template to the guide structure and reduce unwanted movement during marking.

• 🧩 Interchangeable Inserts — Replaceable inserts accommodate different opening sizes, making the template suitable for various installation requirements.

• 🧱 Suitable for Multiple Materials — Useful when marking and preparing surfaces such as tile, concrete, brick, aerated concrete, and drywall.

• ⚡ Improve Installation Efficiency — Helps simplify repeated measurements and reduces the need to manually calculate multiple positions.

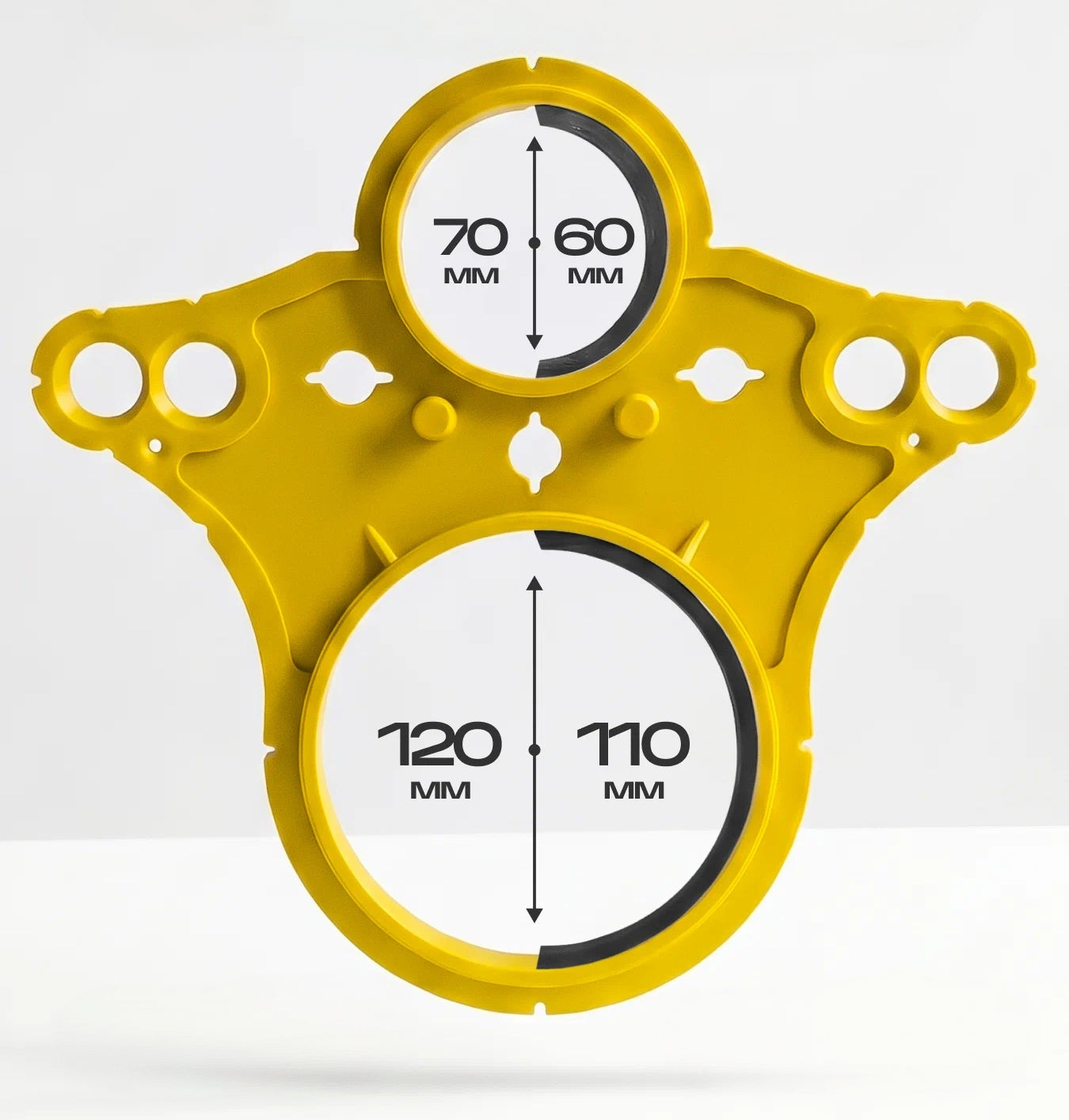

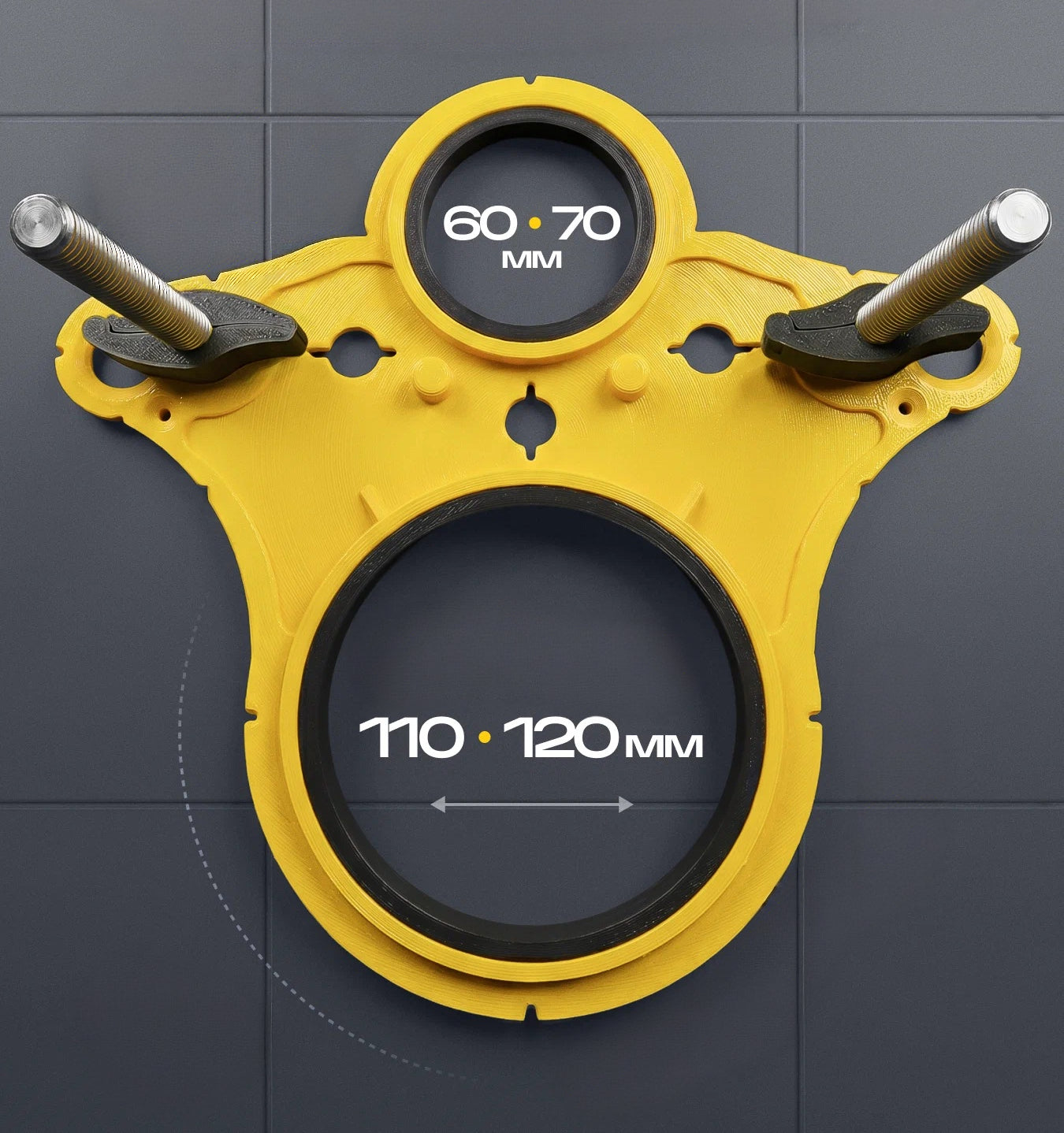

Adjustable Opening Sizes

Main Inserts

• 🚰 Drain Opening: 70 mm
• 🚽 Waste/Connection Opening: 120 mm

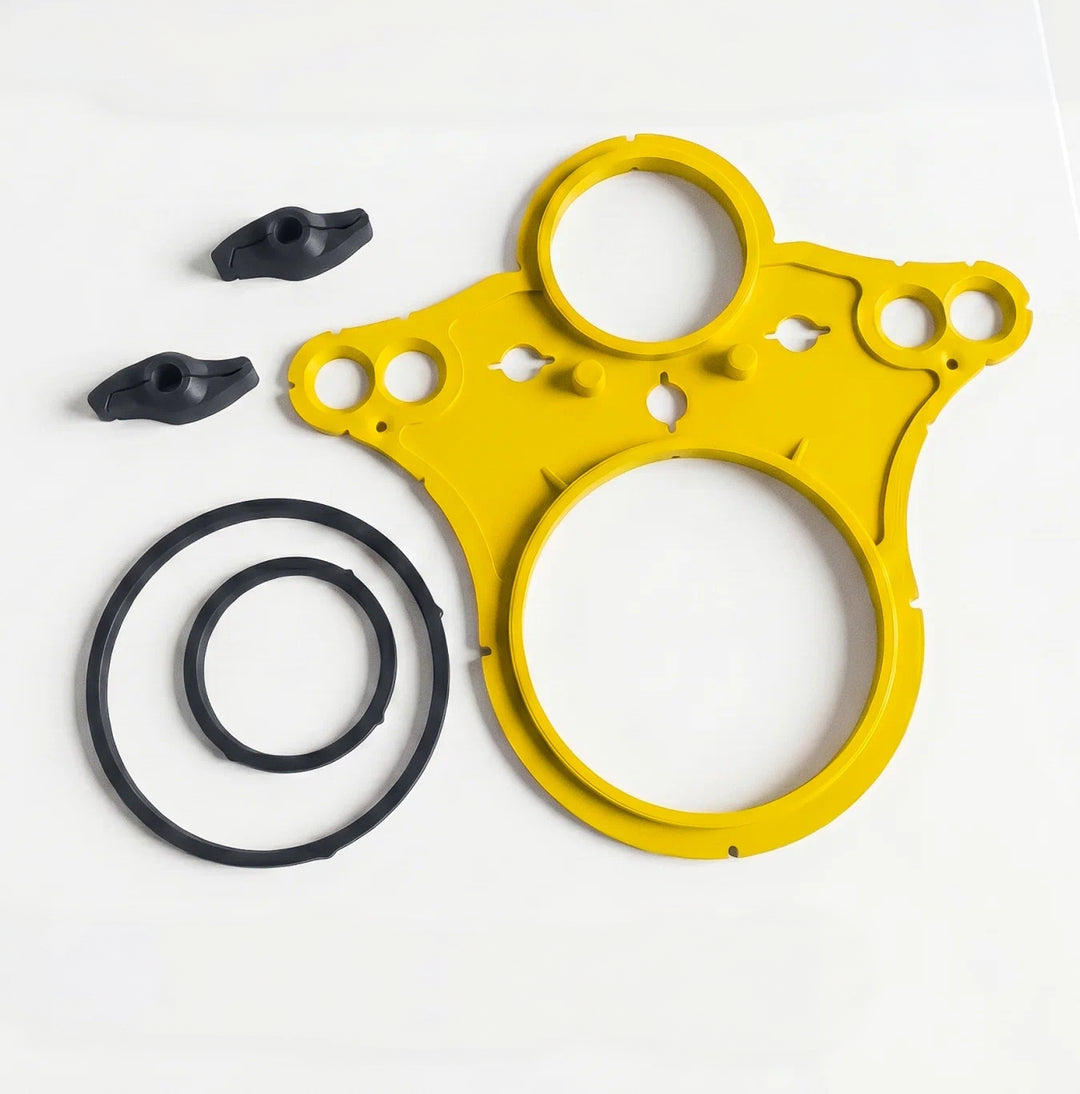

Replacement Spacer Rings

• 🔵 Drain: 60 mm
• 🔵 Waste/Connection: 110 mm

Installation Compatibility

The template supports two common stud spacing configurations:

• 180 mm
• 230 mm

Product Details

• Product Type: Plumbing Installation Marking Template
• Material: Durable Construction
• Color: Yellow 💛
• Width: 30 cm
• Height: 4 cm
• Depth: 30 cm
• Application: Toilet, Bidet, Urinal & Installation Systems
• Compatible Toilet Types: Floor-Mounted & Wall-Hung

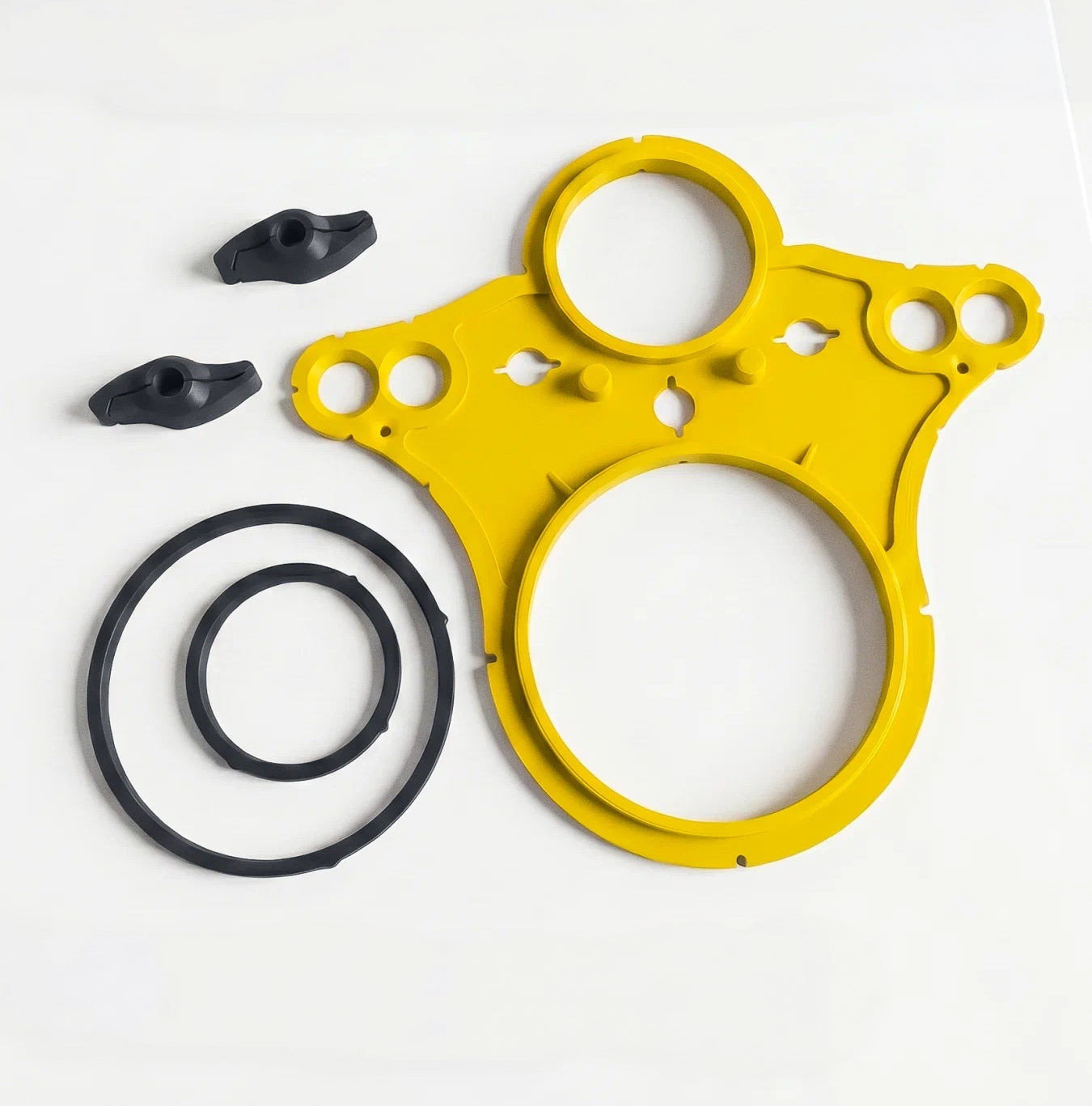

🧰 What's Included

• 1 × Installation Marking Frame
• 2 × Threaded Spacer Fixers
